ESAB Sentinal A60 Air Helmet

Code: M201360

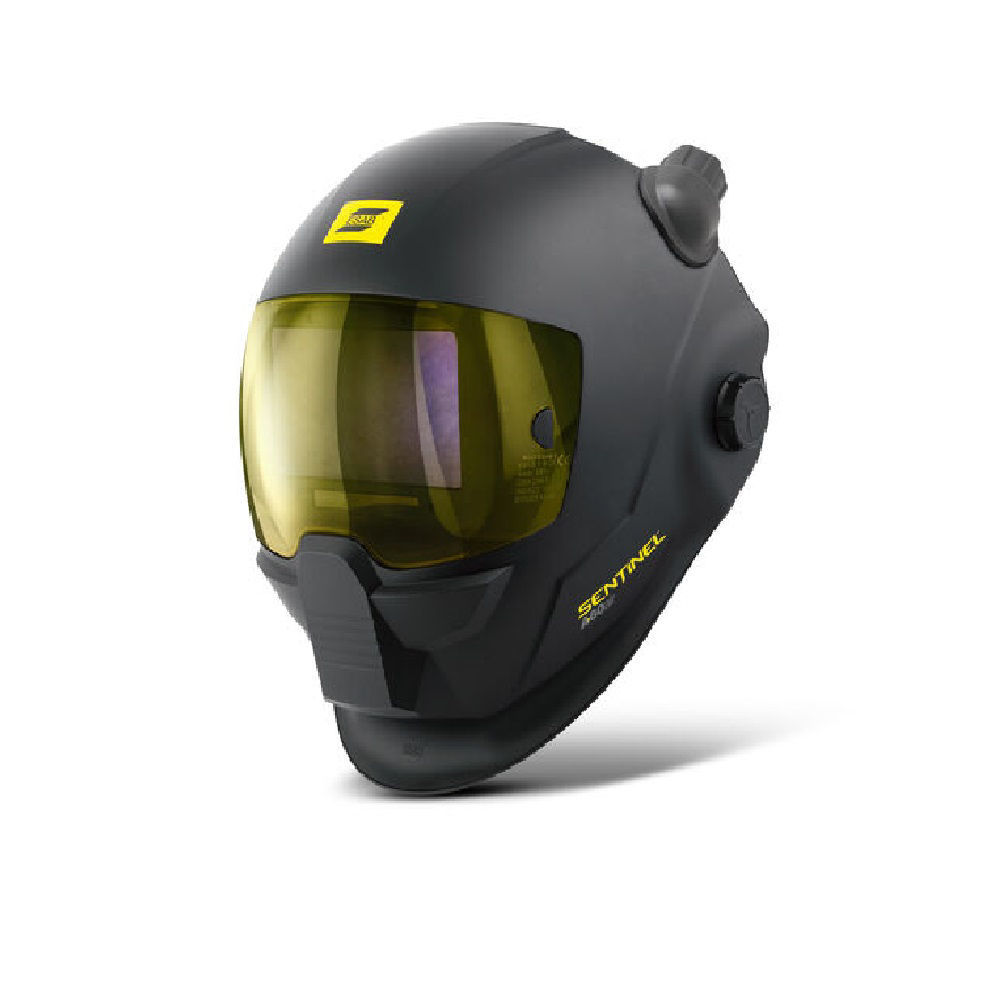

The Sentinel A60 Air welding helmet builds on the advancements of the standard Sentinel A60, taking your welding to the next level. A large panoramic view and perfect 1/1/1/1 EN optical clarity provide an even wider view of the weld pool without any distortion.

Click here to download a trade account & obtain discounted prices.

Description

ADF viewing area: 118 x 71 mm (4.65 x 2.80 in.) and intuitive internal ADF controls including sensitivity and delay
Shade range: DIN 3/5–13, adjustable in 0.5 increments and ADF shade lock setting
ESAB OpTCS True Colour Lens Technology
On-board memory for up to 9 settings
Arc sensors: 4
Fast switching time of 0.04 millisecond
Replaceable CR2450 battery
Low battery, grind mode and shade lock LEDs
Respiratory option with ESAB PAPR
Adjustable in 0.5 shade increments

Specification

Attribute name	Attribute value
Weight	860g
Certification	ISO: 16321 +TIG; EN12941 TH3 (with EPR-X1 PAPR) CE: EN175; EN379; EN166 AS/NZS: 1338.1 CSA: Z94.3 ANSI: Z87.1

ADF viewing area: 118 x 71 mm (4.65 x 2.80 in.) and intuitive internal ADF controls including sensitivity and delay
Shade range: DIN 3/5–13, adjustable in 0.5 increments and ADF shade lock setting
ESAB OpTCS True Colour Lens Technology
On-board memory for up to 9 settings
Arc sensors: 4
Fast switching time of 0.04 millisecond
Replaceable CR2450 battery
Low battery, grind mode and shade lock LEDs
Respiratory option with ESAB PAPR
Adjustable in 0.5 shade increments

Attribute name	Attribute value
Weight	860g
Certification	ISO: 16321 +TIG; EN12941 TH3 (with EPR-X1 PAPR) CE: EN175; EN379; EN166 AS/NZS: 1338.1 CSA: Z94.3 ANSI: Z87.1
