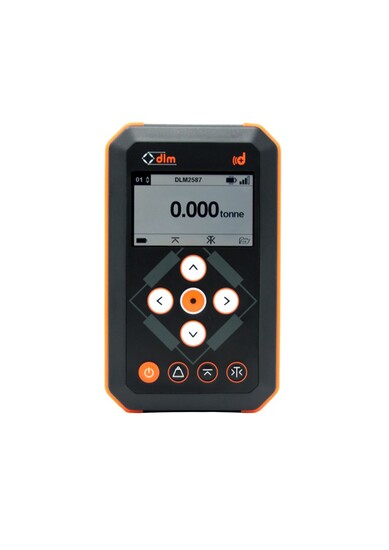

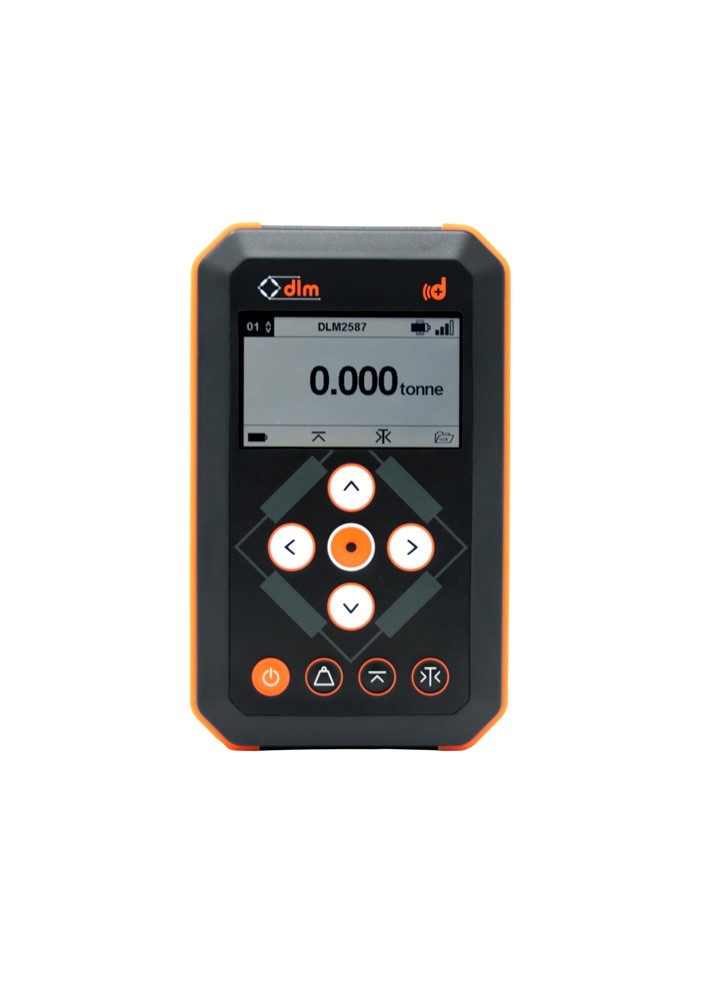

HAND HELD FOR LOW PROIFILE LOAD CELLS

The TW-3.0-s Handheld Display is a simple to operate multifunctional load monitoring device for use with the low profile compressive load cells. Suitable for use with the Low Profile Load Cells (146/02).

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

High quality optically bonded LCD display to improve clarity in sunlight
Connects to a single load cell via cable connection
Built in pulse measurement to show speed and distance
Rolling average feature for unsteady loads
Rolling average feature for unsteady loads
Internal audible alarm 90dB

Specification

Attribute name	Attribute value
Model	TL-3.0 S
Connectivity	RS232 serial or 0-5V analogue output
Measuring range	Kg, Metric tonnes, Us tons, Kips, kN, lb
Measurement rate	5 to 0.03Hz
Bridge excitation	2.5vdc
Battery type	4 x AA
Battery life (constant use)	>150 hours
Enlcosure	Slimline IP67 plastic
Keypad	Membrane with tactile switches

High quality optically bonded LCD display to improve clarity in sunlight
Connects to a single load cell via cable connection
Built in pulse measurement to show speed and distance
Rolling average feature for unsteady loads
Rolling average feature for unsteady loads
Internal audible alarm 90dB

Attribute name	Attribute value
Model	TL-3.0 S
Connectivity	RS232 serial or 0-5V analogue output
Measuring range	Kg, Metric tonnes, Us tons, Kips, kN, lb
Measurement rate	5 to 0.03Hz
Bridge excitation	2.5vdc
Battery type	4 x AA
Battery life (constant use)	>150 hours
Enlcosure	Slimline IP67 plastic
Keypad	Membrane with tactile switches
