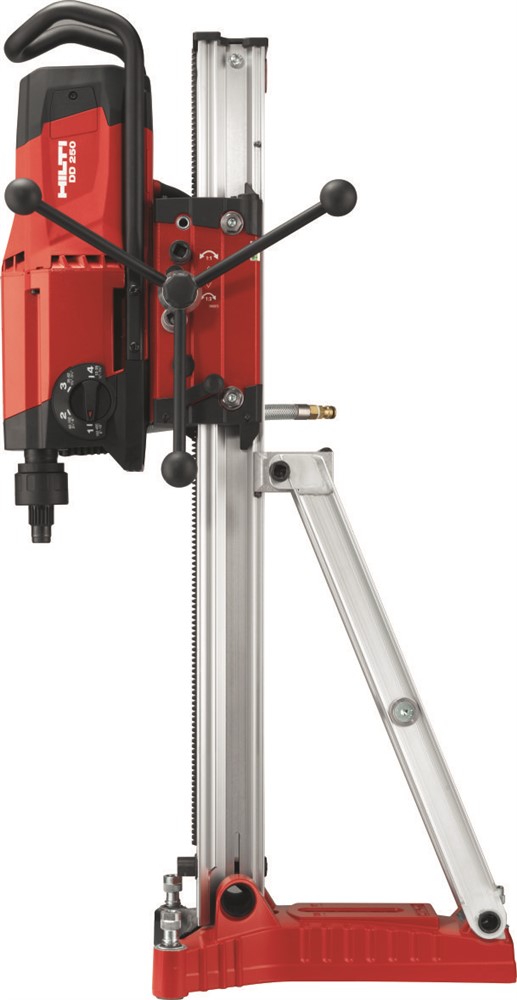

HILTI DD250 DIAMOND DRILL MOTOR & RIG 110v

Advanced heavy-duty diamond drilling rig for very small to large diameters of 12-450 mm (1/2" - 18”) suitable for a number of applications; Penetrations for ducts, pipes and cables; Openings for ventilation, Stitch drilling for breaches, Coring holes for service entries or demolition work. With four gears and Real-time information display – digital spirit level, gear selector, power control function, trip counter, running time counter and easily understood service messages.

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

Air-cooled, heavy-duty drive unit
Four-speed gearing and convenient controls
Hole-starting function for large-sized core bits
Diameters 12-450mm

Specification

Attribute name	Attribute value
Model	DD250
No load RPM gear 1	240 rpm
gear 2	580 rpm
gear 3	1160 rpm
gear 4	2220 rpm
Weight according to EPTA Procedure 01/2003	15.3 kg
Weight of complete system	37 kg
Dimensions (LxWxH)	630 x 190 x 215 mm
A-weighted emission sound pressure level	93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)	2.5 m/s²

Air-cooled, heavy-duty drive unit
Four-speed gearing and convenient controls
Hole-starting function for large-sized core bits
Diameters 12-450mm

Attribute name	Attribute value
Model	DD250
No load RPM gear 1	240 rpm
gear 2	580 rpm
gear 3	1160 rpm
gear 4	2220 rpm
Weight according to EPTA Procedure 01/2003	15.3 kg
Weight of complete system	37 kg
Dimensions (LxWxH)	630 x 190 x 215 mm
A-weighted emission sound pressure level	93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)	2.5 m/s²
