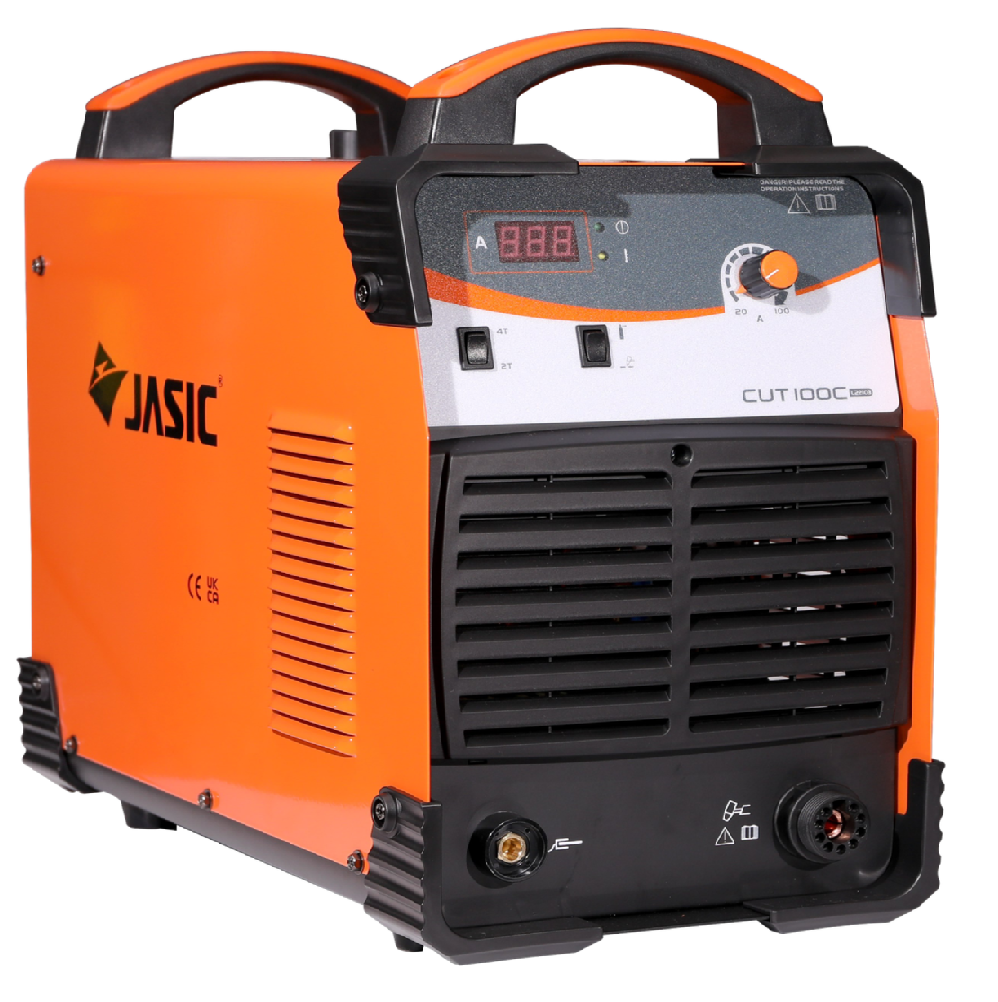

Jasic Cut 101 Plasma Inverter Package

Code: M201224

The Jasic Pro Plasma Cut 101 is professional high-end cutting inverter equipped with the latest IGBT technology. This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance. The machine provides variable cutting control that allows the operator to produce precise smooth cuts.

Click here to download a trade account & obtain discounted prices.

Description

Supplied with the PT100 6m plasma torch
IGBT plasma cutting inverter
Lightweight portable modern design
Variable cutting control
Non HF ignition
LED display
Smooth precise cutting
Simple operation
CNC Interface fitted as standard
Inbuilt pressure regulator
Fan on demand
AVR generator friendly
5 Year Warranty

Specification

Attribute name	Attribute value
Input voltage	AC 400V - 50/60 Hz
Ieff (A)	17
Input Power (kVA)	18.8
Current Range (A)	20 - 100
Duty Cycle @ 40°C	100A @ 60%
Cutting Capacity (Clean)	30 mm
Cutting Capacity (Severance)	35 mm
Efficiency (%)	85
Power Factor	0.99
Protection/Insulation Class	IP21S/F
Compressed Air Requirement	220 Ltr/Min @ 5 Bar (73 psi)
Dimensions (LxWxH mm)	568 x 259 x 446
Weight (kg)	27
