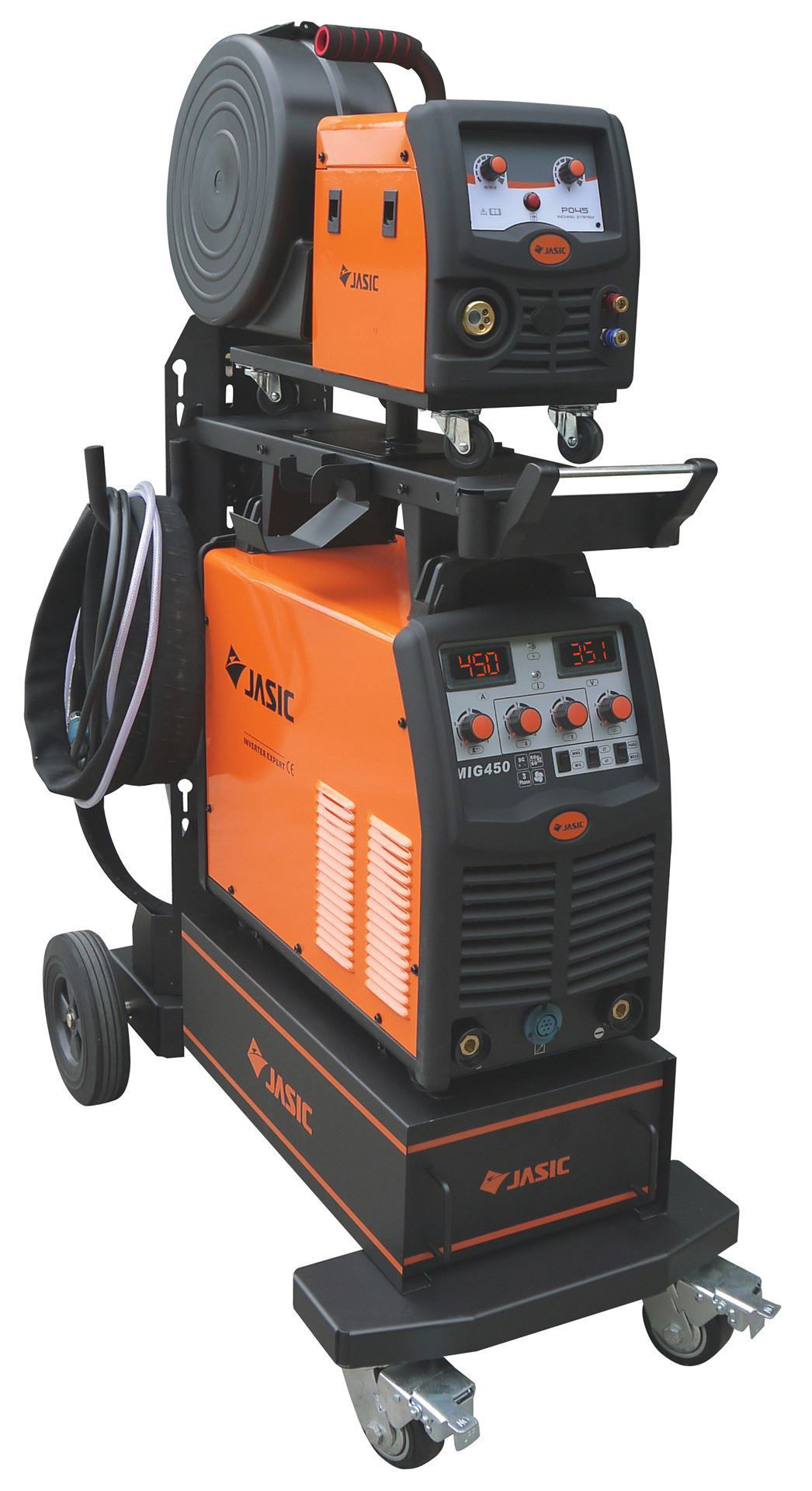

Jasic MIG 452S Multi Process Separate Package

Code: M201216

Jasic MIG 450 Separate Inverter Package includes power source, MIG torch, gas regulator, work return lead & clamp.

Click here to download a trade account & obtain discounted prices.

Jasic MIG 450 Separate Inverter Package includes power source, MIG torch, gas regulator, work return lead & clamp.

Attribute name	Attribute value
Input voltage	AC 400V - 50/60 Hz
Ieff(A)	27
Input Power (kVA)	18.7
Voltage Adjustment Range (V)	15 - 40
Current Range (A)	MIG 60 - 450 MMA 30 - 400
Duty Cycle @ 40°C	400A @ 100%
No-Load Voltage (V)	65
Wire Speed (m/min)	1 - 18
Efficiency (%)	85
Power Factor	0.91
Protection/Insulation Class	IP21S/F
Dimensions (LxWxH mm)	1020 x 505 x 1460
Weight (kg)	108

Jasic MIG 450 Separate Inverter Package includes power source, MIG torch, gas regulator, work return lead & clamp.

Attribute name	Attribute value
Input voltage	AC 400V - 50/60 Hz
Ieff(A)	27
Input Power (kVA)	18.7
Voltage Adjustment Range (V)	15 - 40
Current Range (A)	MIG 60 - 450 MMA 30 - 400
Duty Cycle @ 40°C	400A @ 100%
No-Load Voltage (V)	65
Wire Speed (m/min)	1 - 18
Efficiency (%)	85
Power Factor	0.91
Protection/Insulation Class	IP21S/F
Dimensions (LxWxH mm)	1020 x 505 x 1460
Weight (kg)	108
