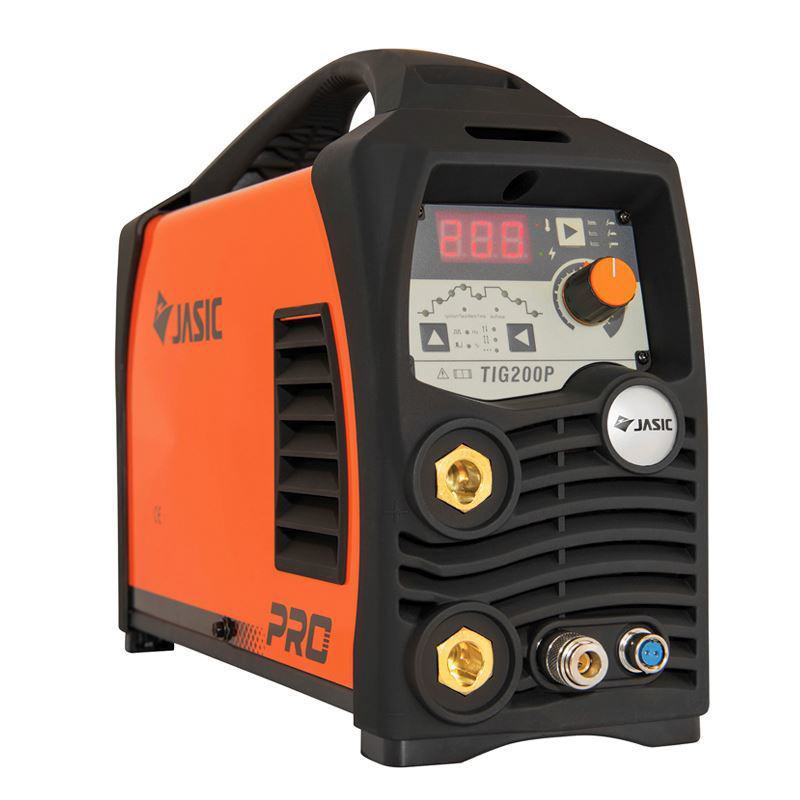

Jasic TIG 200 Pulse PFC DC Inverter Package

Code: M201218

The Jasic TIG 200 Pulse wide voltage is equipped with powerful IGBT components and a singular PCB for improved efficiency and maintenance. This technologically advanced PFC energy saving TIG inverter welder is extremely user-friendly and offers reliable and consistent arc performance. The TIG 200 with high frequency starting also offers MMA (Stick) welding functionality making it an ideal choice for maintenance or manufacturing.

Click here to download a trade account & obtain discounted prices.

Description

DC Pulse TIG/MMA
Wide input voltage 95-265V
Single PCB construction, easy for testing and maintenance
PFC energy saving technology
IGBT inverter technology
High frequency inverter, high efficiency
Digital control, HF arc ignition 2T/4T
Pulse frequency 0.5-200 Hz
Easy start, stable and reliable arc
Auto-compensation for voltage fluctuation
Compact size, lightweight and modern design
Heavy duty 35-50mm dinse sockets
High quality tactile rubber finish to mouldings and handle
Supplied in full colour packaging
AVR generator friendly
5 Year Warranty

Specification

Attribute name	Attribute value
Input voltage	95-265V - AC 50/60Hz 115V 230V
Ieff (A)	27.7 14.2
Input Power (kVA)	4 6
Current Range (A)	TIG 10 - 160, MMA 10 - 125 TIG 10 - 200, MMA 10 - 180
Duty Cycle @ 40°C	TIG 160A @ 60%, MMA 125A @ 60% TIG 200A @ 30%, MMA 180A @ 25%
No-Load Voltage (V)	65
Efficiency (%)	85
Pulse Frequency (Hz)	0.5 - 200
Power Factor	0.99
Protection/Insulation Class	IP21S/F
Dimensions (LxWxH mm)	420 x 135 x 277
Weight (kg)	7.5

DC Pulse TIG/MMA
Wide input voltage 95-265V
Single PCB construction, easy for testing and maintenance
PFC energy saving technology
IGBT inverter technology
High frequency inverter, high efficiency
Digital control, HF arc ignition 2T/4T
Pulse frequency 0.5-200 Hz
Easy start, stable and reliable arc
Auto-compensation for voltage fluctuation
Compact size, lightweight and modern design
Heavy duty 35-50mm dinse sockets
High quality tactile rubber finish to mouldings and handle
Supplied in full colour packaging
AVR generator friendly
5 Year Warranty

Attribute name	Attribute value
Input voltage	95-265V - AC 50/60Hz 115V 230V
Ieff (A)	27.7 14.2
Input Power (kVA)	4 6
Current Range (A)	TIG 10 - 160, MMA 10 - 125 TIG 10 - 200, MMA 10 - 180
Duty Cycle @ 40°C	TIG 160A @ 60%, MMA 125A @ 60% TIG 200A @ 30%, MMA 180A @ 25%
No-Load Voltage (V)	65
Efficiency (%)	85
Pulse Frequency (Hz)	0.5 - 200
Power Factor	0.99
Protection/Insulation Class	IP21S/F
Dimensions (LxWxH mm)	420 x 135 x 277
Weight (kg)	7.5
