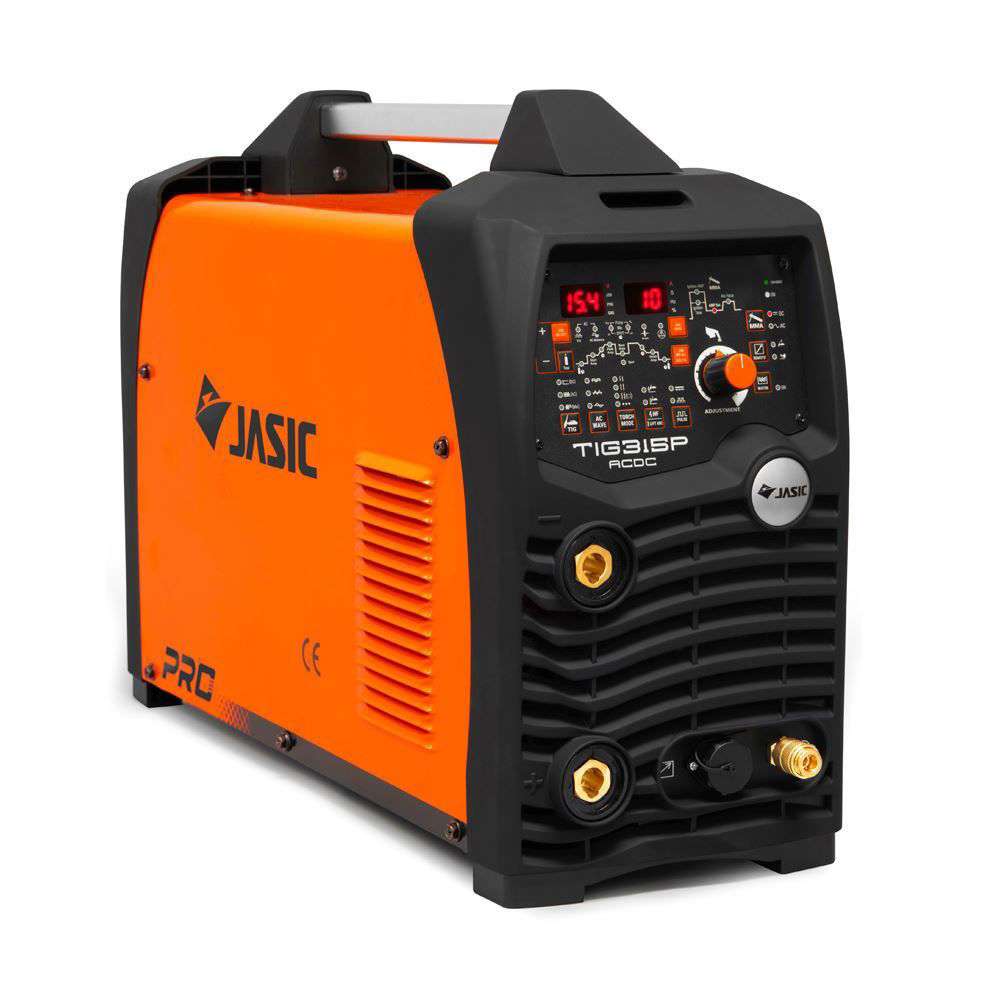

Jasic TIG 315D AC/DC Multi Wave Pulse Inverter Package

Code: M201219

Highly advanced ac/dc inverter with superior multi wave versatility. Premium TIG 315 Pulse AC/DC welding inverter is a technologically advanced three-phase multi wave power source suitable for medium to high production cycles. The innovative and user-friendly digital panel allows full control of the welding parameters. The excellent technical characteristics of the TIG 315 AC/DC make it an ideal choice for professionally skilled TIG welders that require precise control and reliable performance.

Click here to download a trade account & obtain discounted prices.

Description

TIG AC/DC with digital control
Program memory storage up to 50 sets of data
Microprocessor control of a wide range of functions
Multi wave options on AC
Variable AC frequency
Remote control interface
VRD function
Intelligent fan and cooler control
Excellent welding characteristics
Handle for ease of portabilit
5 Year Warranty

Specification

Attribute name	Attribute value
Input voltage	AC 400V +/-15% - 50/60 Hz
Ieff (A)	TIG 10 MMA 12.4
Input Power (kVA)	14
Current Range (A)	TIG 10 - 315 MMA 10 - 270
Duty Cycle @ 40°C	TIG 315A @ 30% MMA 270A @ 30%
No-Load Voltage (V)	73 (12.4V - VRD)
Efficiency (%)	85
Protection/Insulation Class	IP21S/F
Dimensions (LxWxH mm)	566 x 224 x 405
Weight (kg)	25.5
