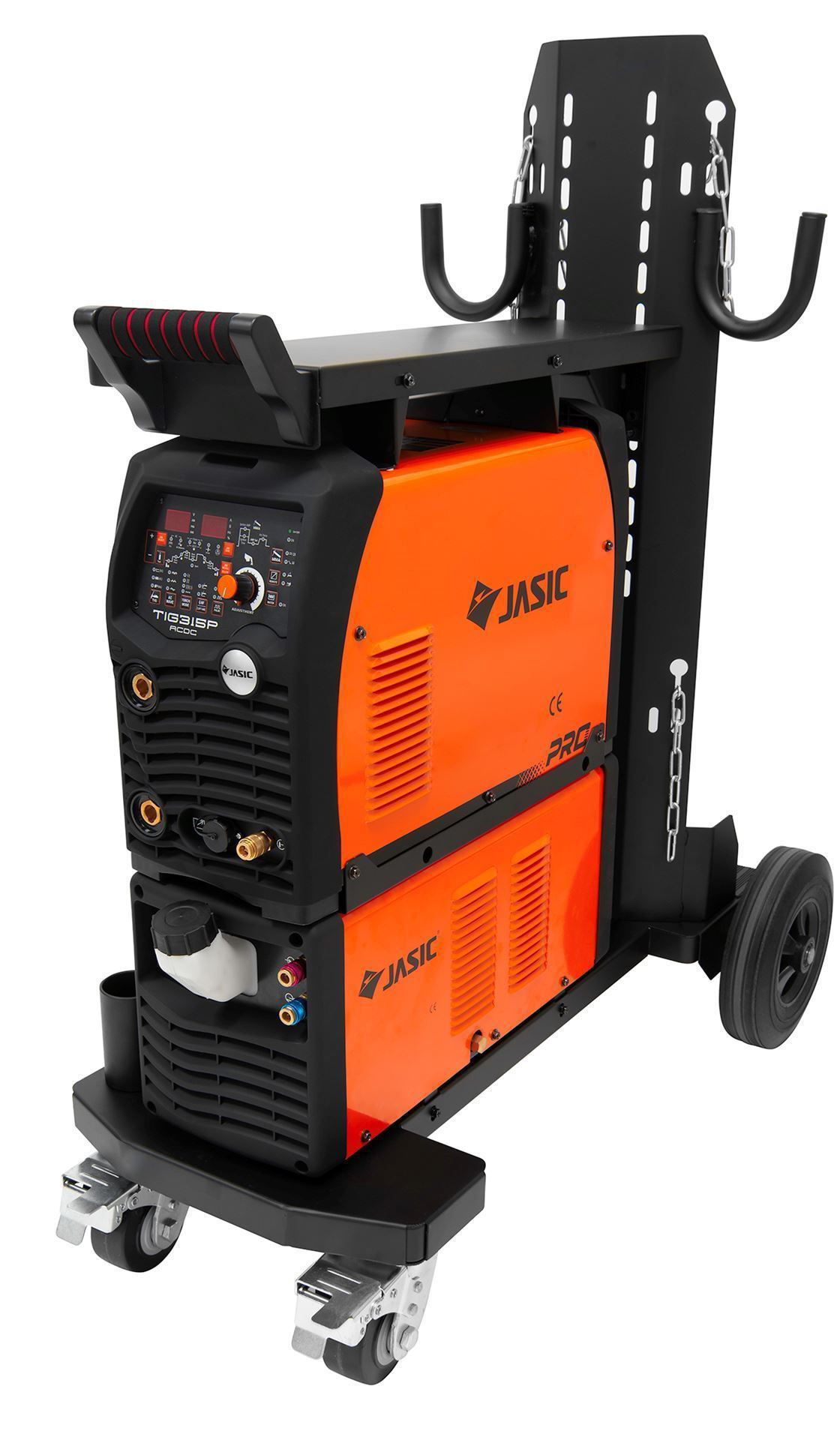

Jasic TIG 315D AC/DC Multi Wave Pulse Water Cooled Inverter Package

Code: M201220
Jasic TIG 315P AC/DC Multi Wave Digital Inverter Water Cooled.
Sign in to have your special net rates displayed.

Click here to download a trade account & obtain discounted prices.

Description

Jasic TIG 315P AC/DC Multi Wave Digital Inverter Water Cooled.

  • TIG AC/DC with digital control
  • Program memory storage up to 50 sets of data
  • Microprocessor control of a wide range of functions
  • Square, Triangular, Sine, Mixed Wave
  • Multi wave options on AC
  • Variable AC frequency
  • Remote control interface
  • VRD function
  • Intelligent fan and cooler contro
  • Excellent welding characteristics
  • 5 Year Warranty

Specification

Attribute name Attribute value
Input voltage AC 400V +/-15% - 50/60 Hz
Ieff (A) TIG 10
MMA 12.4
Input Power (kVA) 14
Current Range (A) TIG 10 - 315
MMA 10 - 270
Duty Cycle @ 40°C TIG 315A @ 30%
MMA 270A @ 30%
No-Load Voltage (V) 73 (12.4V - VRD
Efficiency (%) 85
Protection/Insulation Class IP21S/F
Dimensions (LxWxH mm) 566 x 224 x 405
Weight (kg) 25.5
