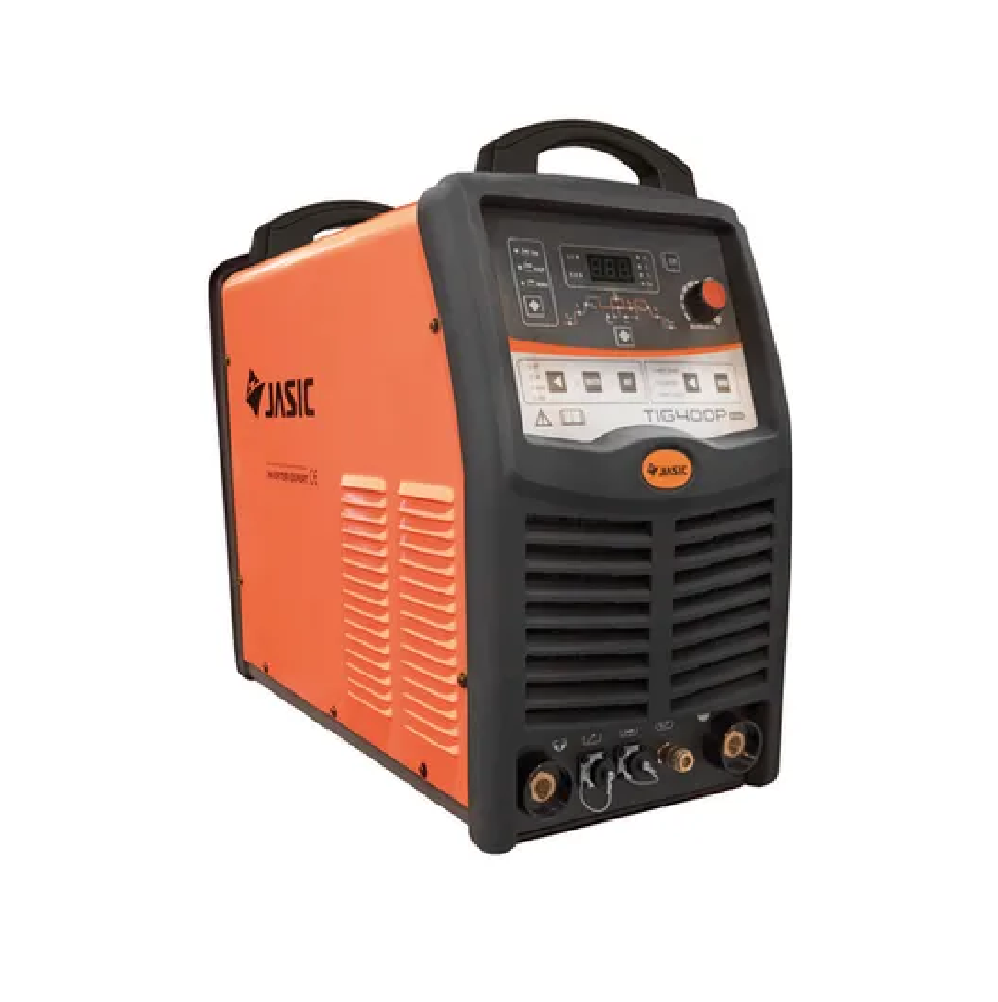

Jasic TIG 400P DC Inverter Package

Code: M201221

The Jasic TIG 400 Pulse inverter (Air-Cooled) is equipped with industrial grade IGBT components and an MCU chip for high accuracy and performance. This technologically advanced inverter with a digital panel allows for software upgrades and provides 8 channel automatic storage of the welding parameters.

Click here to download a trade account & obtain discounted prices.

Description

The Jasic TIG 400 Pulse inverter (Air Cooled) is equipped with industrial grade IGBT components and an MCU chip for high accuracy and performance. This technologically advanced inverter with a digital panel allows for software upgrades and provides 8 channel automatic storage of the welding parameters.

Industrial grade IGBT inverter technology
DC Pulse TIG/MMA with VRD function option
MCU chip for high accuracy and consistency
HF or Lift arc ignition, 2T/4T, spot-time
Up/down slope, pre/post flow, crater/initial/weld current
Digital panel with interface for easy software upgrades
Gas test function in DC TIG mode
Automatic 8 channel storage of welding parameter
Generator friendly
5 Year Warranty

Specification

Attribute name	Attribute value
Input voltage	AC 400V - 50/60 Hz
Ieff (A)	14
Input Power (kVA)	18
Current Range (A)	TIG DC 5 - 400 MMA DC 30 - 400
Duty Cycle @ 40°C	400A @ 50%
No-Load Voltage (V)	68
Efficiency (%)	85
Power Factor	0.96
Protection/Insulation Class	IP21S/F
Dimensions (LxWxH mm)	760 x 360 x 585
Weight (kg)	90

Industrial grade IGBT inverter technology
DC Pulse TIG/MMA with VRD function option
MCU chip for high accuracy and consistency
HF or Lift arc ignition, 2T/4T, spot-time
Up/down slope, pre/post flow, crater/initial/weld current
Digital panel with interface for easy software upgrades
Gas test function in DC TIG mode
Automatic 8 channel storage of welding parameter
Generator friendly
5 Year Warranty

Attribute name	Attribute value
Input voltage	AC 400V - 50/60 Hz
Ieff (A)	14
Input Power (kVA)	18
Current Range (A)	TIG DC 5 - 400 MMA DC 30 - 400
Duty Cycle @ 40°C	400A @ 50%
No-Load Voltage (V)	68
Efficiency (%)	85
Power Factor	0.96
Protection/Insulation Class	IP21S/F
Dimensions (LxWxH mm)	760 x 360 x 585
Weight (kg)	90
