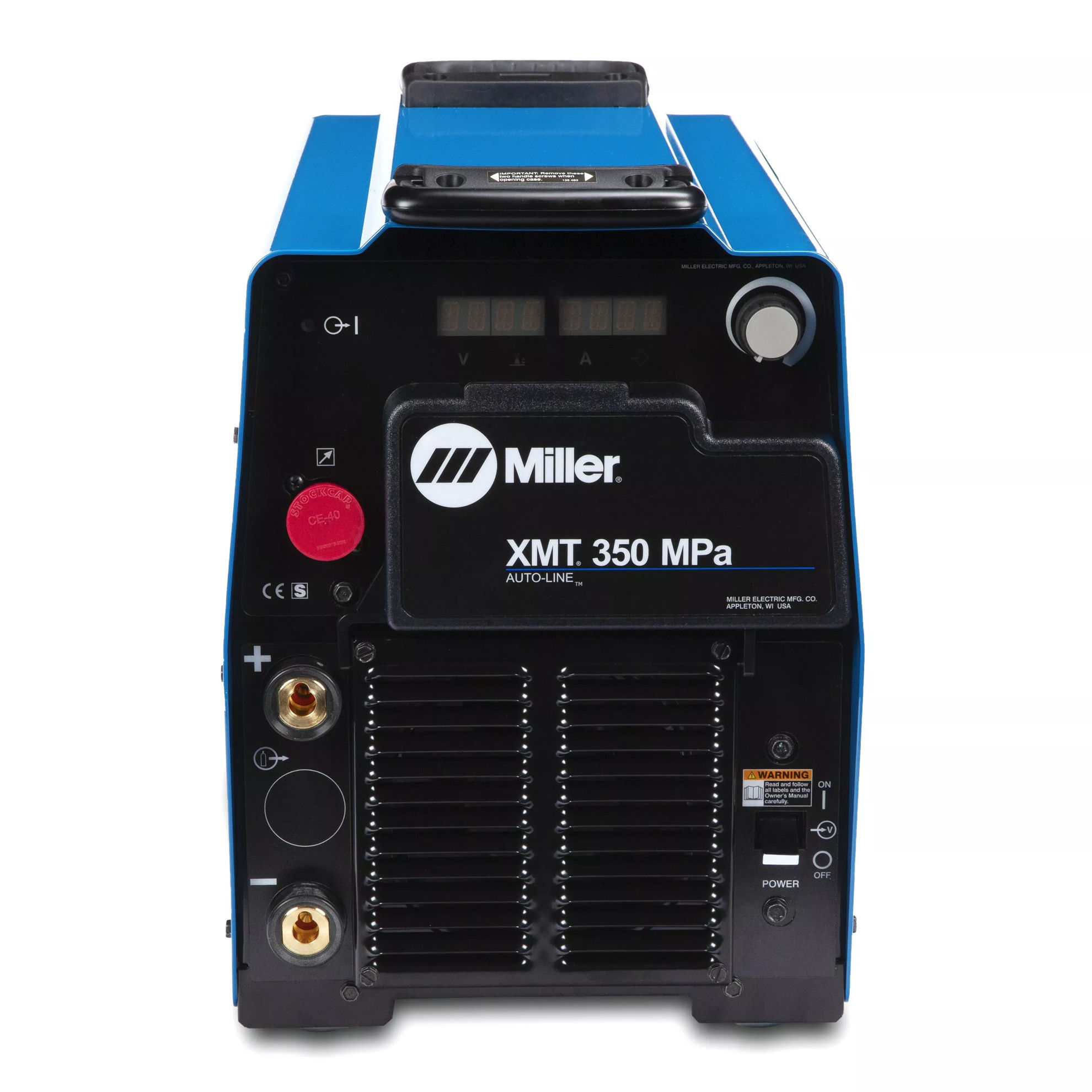

MILLER XMT 350 MPA PULSE MIG POWER SOURCE

Portability and excellent arc performance make the XMT® family the most popular in the industry. The XMT® 350 MPa offers built-in pulse programs for standard steels, high-strength steels and aluminum.

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

Wind Tunnel Technology™ protects electrical components and PC boards from contamination
Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
Lift-Arc™ allows TIG starting without the use of highfrequency. Starts the arc without contaminating the weld with tungsten.
Adaptive Hot Start™ increases the output amperage at the start of the weld if necessary, reducing electrode sticking.
Process selector switch reduces the number of control setup combi nations without reducing any features.
Auto Remote Sense™ enables unit to automatically use remote control if connected to remote control receptacle.
Large, dual digital meters are easy to view and are presettable to ease setting weld output.
Auto-Line™ power management technology allows for any input voltage hookup (230–575 V) with no manual linking required, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.
Built-in pulsed MIG capabilities.
Advanced arc control enables an improved pulse welding arc. The operator has more control over puddle and bead characteristics using SharpArc. In addition, the unit provides a more robust and stable arc at very low arc length, reducing heat input, and providing the ability to weld on a wider range of material thickness.
SharpArc® controls the arc in pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile.
-volt auxiliary power provides 10 amps of circuit-breakerprotected power for coolant systems, etc.

Specification

Attribute name	Attribute value
Industries	Construction Shipbuilding Railroad Truck/trailer manufacturing Fabrication Repair shops Rental fleets Power generation plants
Weldable Metals	Thin to thick, All materials, 0,8-1.6 mm solid, Cored wires
Input voltage	230 – 575 V
Input Phase	3-phase power
Input Hz	50/60 Hz
Amperage Range	5–425 A
Rated Output	275 A at 100% duty cycle 350 A at 60% duty cycle
Max Open Circuit Voltage	75 VDC
Weld Output	CC/CV
Net Width	318 mm (12.5 in.)
Net Height	432 mm (17 in.)
Net Length	610 mm (24 in.)
Net Weight	36.3 kg (80 lb.) without aux. pwr. 43 kg (94.8 lb.) with aux. pwr.

Wind Tunnel Technology™ protects electrical components and PC boards from contamination
Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
Lift-Arc™ allows TIG starting without the use of highfrequency. Starts the arc without contaminating the weld with tungsten.
Adaptive Hot Start™ increases the output amperage at the start of the weld if necessary, reducing electrode sticking.
Process selector switch reduces the number of control setup combi nations without reducing any features.
Auto Remote Sense™ enables unit to automatically use remote control if connected to remote control receptacle.
Large, dual digital meters are easy to view and are presettable to ease setting weld output.
Auto-Line™ power management technology allows for any input voltage hookup (230–575 V) with no manual linking required, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.
Built-in pulsed MIG capabilities.
Advanced arc control enables an improved pulse welding arc. The operator has more control over puddle and bead characteristics using SharpArc. In addition, the unit provides a more robust and stable arc at very low arc length, reducing heat input, and providing the ability to weld on a wider range of material thickness.
SharpArc® controls the arc in pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile.
-volt auxiliary power provides 10 amps of circuit-breakerprotected power for coolant systems, etc.

Attribute name	Attribute value
Industries	Construction Shipbuilding Railroad Truck/trailer manufacturing Fabrication Repair shops Rental fleets Power generation plants
Weldable Metals	Thin to thick, All materials, 0,8-1.6 mm solid, Cored wires
Input voltage	230 – 575 V
Input Phase	3-phase power
Input Hz	50/60 Hz
Amperage Range	5–425 A
Rated Output	275 A at 100% duty cycle 350 A at 60% duty cycle
Max Open Circuit Voltage	75 VDC
Weld Output	CC/CV
Net Width	318 mm (12.5 in.)
Net Height	432 mm (17 in.)
Net Length	610 mm (24 in.)
Net Weight	36.3 kg (80 lb.) without aux. pwr. 43 kg (94.8 lb.) with aux. pwr.
