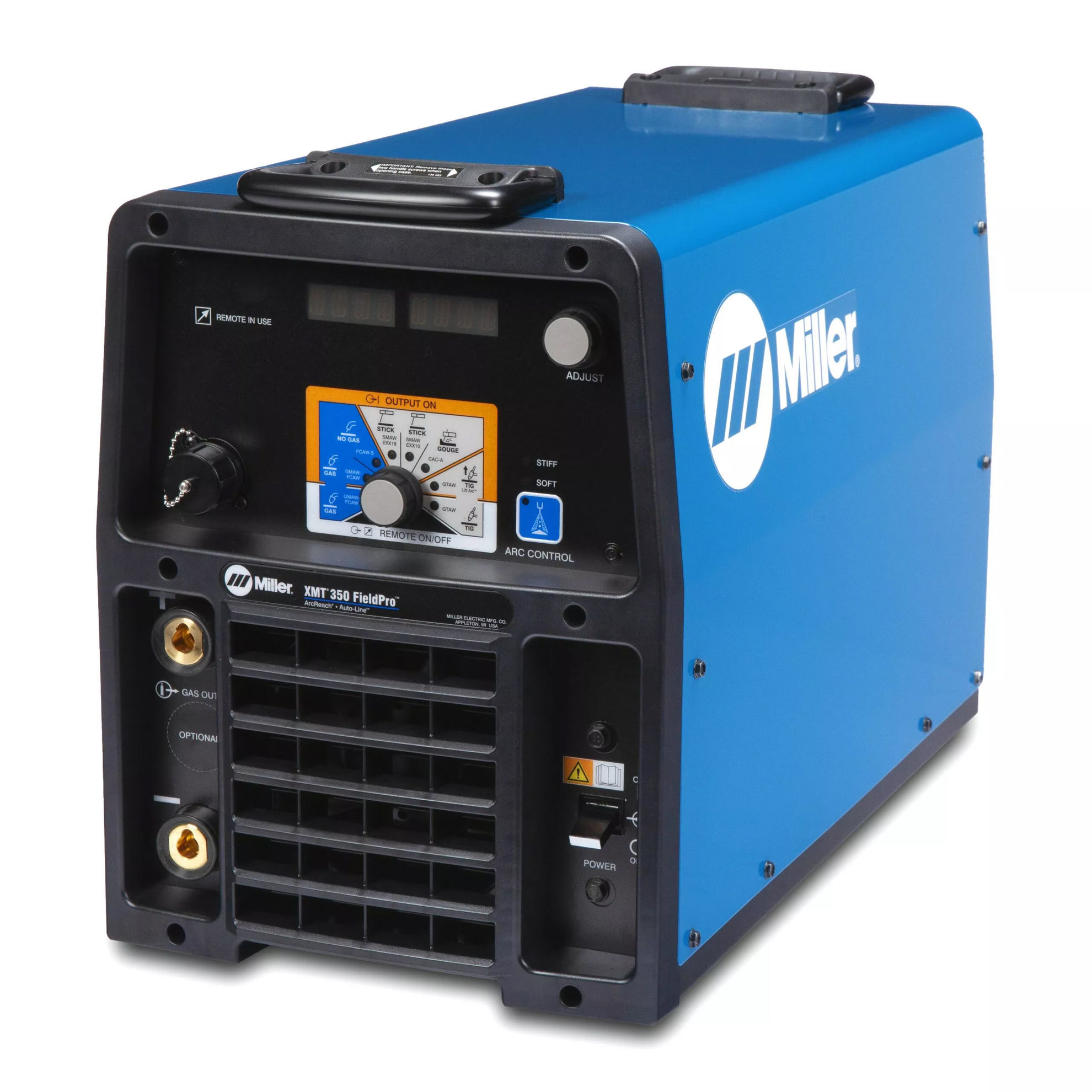

MILLER ARC-REACH MIG POWER SOURCE SETUP 415V

The XMT® 350 FieldPro™ with the game-changing ArcReach technology is the ideal work horse for any ﬁeld application. The system offers unrivaled reach between the wire feeder and the power source of up to 100 meters.

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

Eliminate expenses related to main taining or replacing easily damaged control cords Weld cables are used to communicate weld parameters between the wire feeder and power source.
Decrease trip or fall injuries ArcReach technology allows weld operators to make parameter changes at the wire feeder/remote instead of having to travel through multistory and cluttered jobsites back to the power source.
Weld operators can Adjust While Welding (AWW™) to change weld parameters while the arc is on.
Maximize fleet compatibility and get the benefits of ArcReach when you pair XMT 350 FieldPro welders and ArcReach feeders with other ArcReach compatible products.
Regulated Metal Deposition (RMD®) and pulsed MIG* are fully supported, enabling operators to use these advanced processes in the field for faster, more efficient welds. *Available with ArcReach Smart Feeder only.
Cable Length Compensation (CLC™) ensures voltage an operator sets is voltage they get. CLC automatically adjusts voltage based on weld cable length, even hundreds of feet away from the power source.
Wind Tunnel Technology.™Internal air flow that protects electrical components and PC boards from dirt, dust and debris… greatly improving reliability.
Process selector switch reduces the number of control setup combinations without reducing any features.
Infinite arc control available in the stick and wire modes for easier fine-tuning of tough-to-weld materials and out-of-position applications.
True multiprocess system provides conventional stick, TIG, FCAW, and MIG welding as well as the advanced technologies of RMD and pulse.
Fleet compatibility ArcReach-equipped power sources and wire feeders work with non-ArcReach equipment; however, the complete ArcReach benefit is only realized with the ArcReach system.
Auto-Bind automatically establishes an exclusive communication between the power source and the wire feeder, using the existing weld cables upon system power up.

Auto-Line Technology for portability and reliability, Auto-Line allows for any input voltage hookup (230–575 V, three-phase) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.

Specification

Attribute name	Attribute value
Industries	Construction Shipbuilding Power generation plants Rental fleets
Weldable Metals	Thin to thick, all materials, 0,8-1.6 mm solid, cored wires
Input voltage	230 –575 V
Amperage Range	5–425 A
Output Range	10–38 V, 15–425 A
Rated Output	350 A at 34 VDC, 60% duty cycle
Max Open Circuit Voltage	75 VDC
Net Width	318 mm (12.5 in.)
Net Height	432 mm (17 in.)
Net Length	610 mm (24 in.)
Net Weight	42.2 kg (93 lb.)
