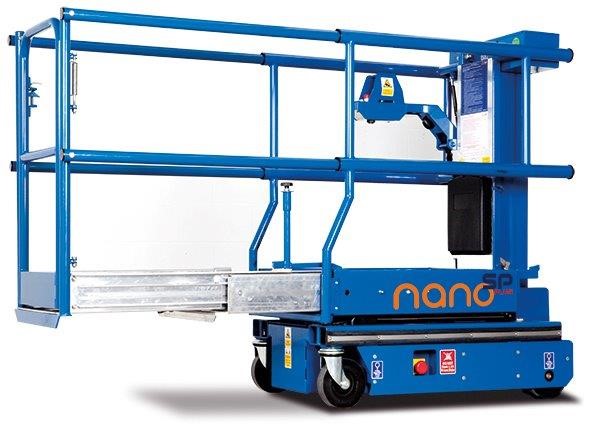

NANO SP PLUS POWER TOWER

Self-propelled using the intuitive joystick control, the SP PLUS has the added benefit of a 1 metre cantilever deck which provides extra outreach of 1.5 metres.

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

Self-propelled using the intuitive joystick control, the SP PLUS has the added benefit of a 1 metre cantilever deck which provides extra outreach of 1.5 metres.

Suitable for indoor or outdoor use
2.5m Platform Height
1m Cantilever provides 1.5m working outreach
Fully self-propelled when elevated
Suitable for raised access flooring (Kingspan approved)
1200 x 750mm working foot print
Auto tilt & Pothole protection

Specification

Attribute name	Attribute value
Model	NANO SP PLUS POWER TOWER
Max Working Height	4.5m
Max Platform Height	2.5m
Platform Dimensions	1000 x 730mm
Platform Dimensions (Cantilever Extended)	2000 x 730mm
Working Foot Print	1200 x 750mm
Closed Dimensions	1195 (L) x 750 (W) x 1560mm (H)
SWL	200kg
SWL (Cantilever deck In Use)	120kg
Weight	540kg
Power	12v DC Battery
Controls	Joystick

Self-propelled using the intuitive joystick control, the SP PLUS has the added benefit of a 1 metre cantilever deck which provides extra outreach of 1.5 metres.

Suitable for indoor or outdoor use
2.5m Platform Height
1m Cantilever provides 1.5m working outreach
Fully self-propelled when elevated
Suitable for raised access flooring (Kingspan approved)
1200 x 750mm working foot print
Auto tilt & Pothole protection

Attribute name	Attribute value
Model	NANO SP PLUS POWER TOWER
Max Working Height	4.5m
Max Platform Height	2.5m
Platform Dimensions	1000 x 730mm
Platform Dimensions (Cantilever Extended)	2000 x 730mm
Working Foot Print	1200 x 750mm
Closed Dimensions	1195 (L) x 750 (W) x 1560mm (H)
SWL	200kg
SWL (Cantilever deck In Use)	120kg
Weight	540kg
Power	12v DC Battery
Controls	Joystick
