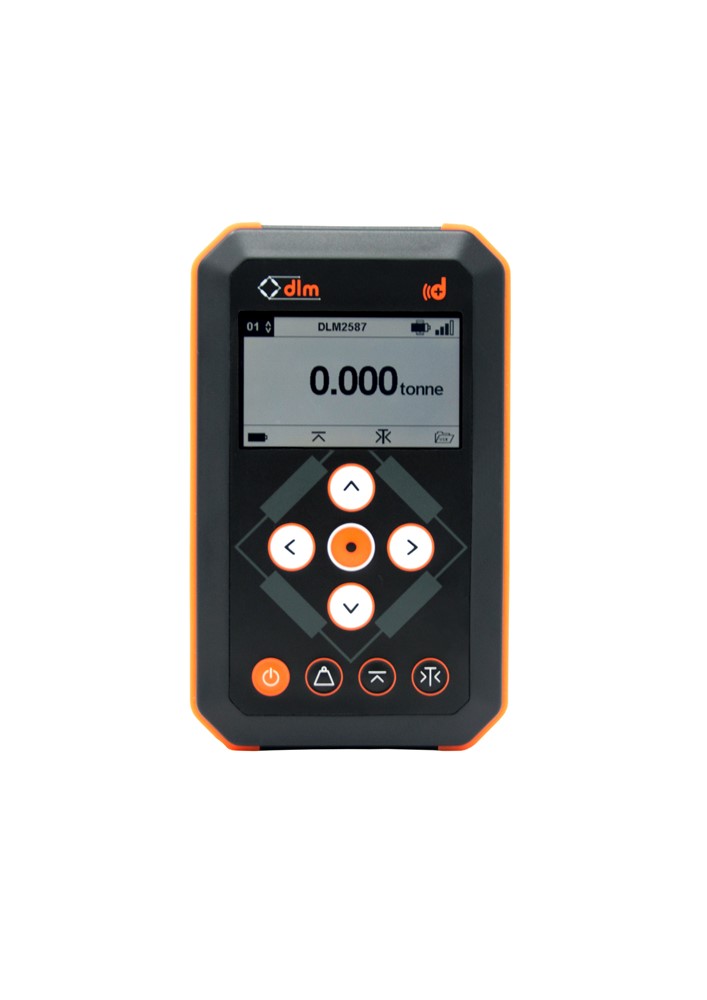

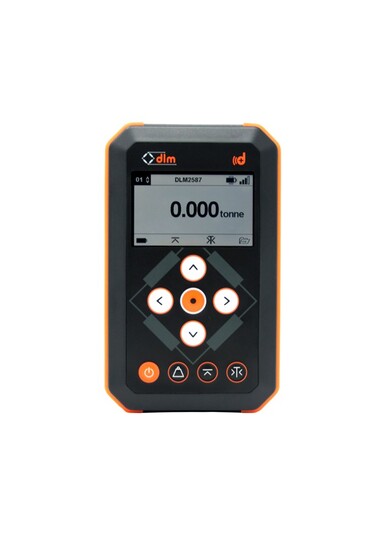

TELEMETRY HAND HELD DISPLAY (WIRELESS)

The TW-3.0-T Telemetry Handheld Display is a simple to operate multifunctional load monitoring device operating with a wireless range of up to 800 metres and suitable for use with the Digital Load Indicators and Compressive load cells (except low profile load cells).

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

High quality optically bonded LCD display to improve clarity in sunlight
Connects via wireless
Key function on/off, Tare, Peak hold, Units
Creates networks comprising of up to 12 individual devices
Impressive 800 metre wireless range
Internal audible alarm 90dB

Specification

Attribute name	Attribute value
Model	TL-3.0 T
Wireless range	800 metres
Measuring range	Kg, Metric tonnes, Us tons, Kips, kN, lb
Measurement rate	4 to 0.03Hz
Bridge excitation	2.5vdc
Battery type	3 x AA
Battery life (constant use)	>150 hours
Enlcosure	Slimline IP67 plastic
Keypad	Membrane with tactile switches

High quality optically bonded LCD display to improve clarity in sunlight
Connects via wireless
Key function on/off, Tare, Peak hold, Units
Creates networks comprising of up to 12 individual devices
Impressive 800 metre wireless range
Internal audible alarm 90dB

Attribute name	Attribute value
Model	TL-3.0 T
Wireless range	800 metres
Measuring range	Kg, Metric tonnes, Us tons, Kips, kN, lb
Measurement rate	4 to 0.03Hz
Bridge excitation	2.5vdc
Battery type	3 x AA
Battery life (constant use)	>150 hours
Enlcosure	Slimline IP67 plastic
Keypad	Membrane with tactile switches
