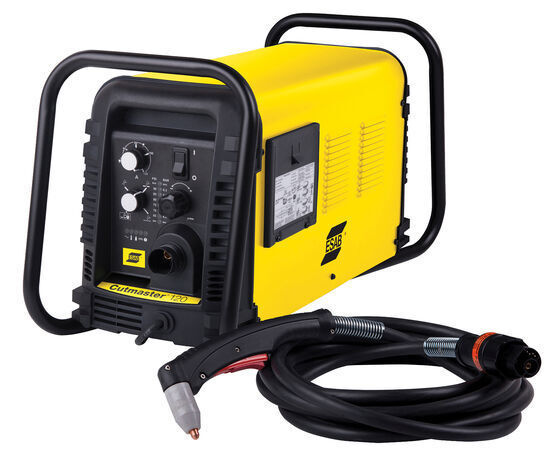

ESAB CUTMASTER 120 PLASMA CUTTER

The ESAB Cutmaster 120, weighing only 28 kg and provides 120 amps of cutting power for a 40mm (1-1/2”) recommended cut and 55mm (2-1/8”) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry. Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.
Sign in to have your special net rates displayed.

Discounted hire rates are availble to all trade account holders.

Click here to download a trade account & obtain discounted prices.

Description

The ESAB Cutmaster 120, weighing only 28 kg and provides 120 amps of cutting power for a 40mm (1-1/2”) recommended cut and 55mm (2-1/8”) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry. Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.

  • True CutTM– 40mm 1-1/2”).
  • Quick Disconnect Torch for easy maintenance or machine torch conversion.
  • Auto-Restrike on mesh or expanded metal for maximum productivity.
  • True-GuardTM roll bar for ultimate protection.
  • TD Surelok® technology for better quality cuts and parts life.

Industry

  • Heavy Fabrication
  • Ship Building
  • Construction
  • Manufacturing
  • Structural Steel
  • Rental Fleets
  • Pipe and Pipelines
  • Mining
  • Demolition and Scappin

Specification

Attribute name Attribute value
Recommended Generator 15.4 kW
Input Ratings 400 V, 3 ph, 50/60 Hz
Duty Cycle 120 A @ 40 % duty cycle
Input voltage 400 V / 32 A @ 400 V
Gas Pressure 5.2 bar
Gas Flow 212 l/min
Severs Manual 55 mm
Pierces 25 mm
Cuts Manual 40 mm
Dimensions, L x W x H 762 x 305 x 381 mm
Weight 28.1 kg
